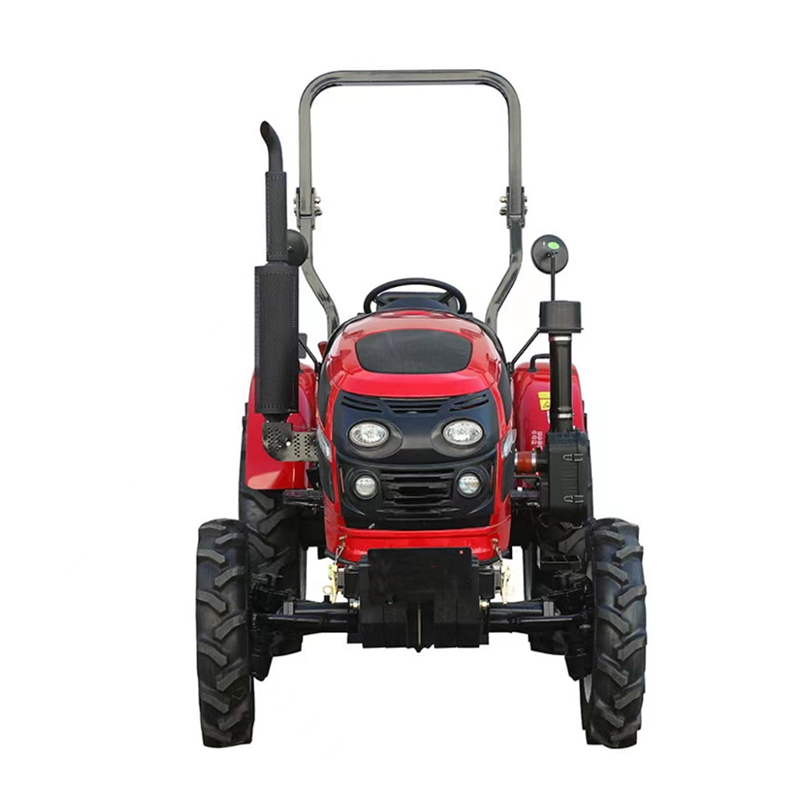

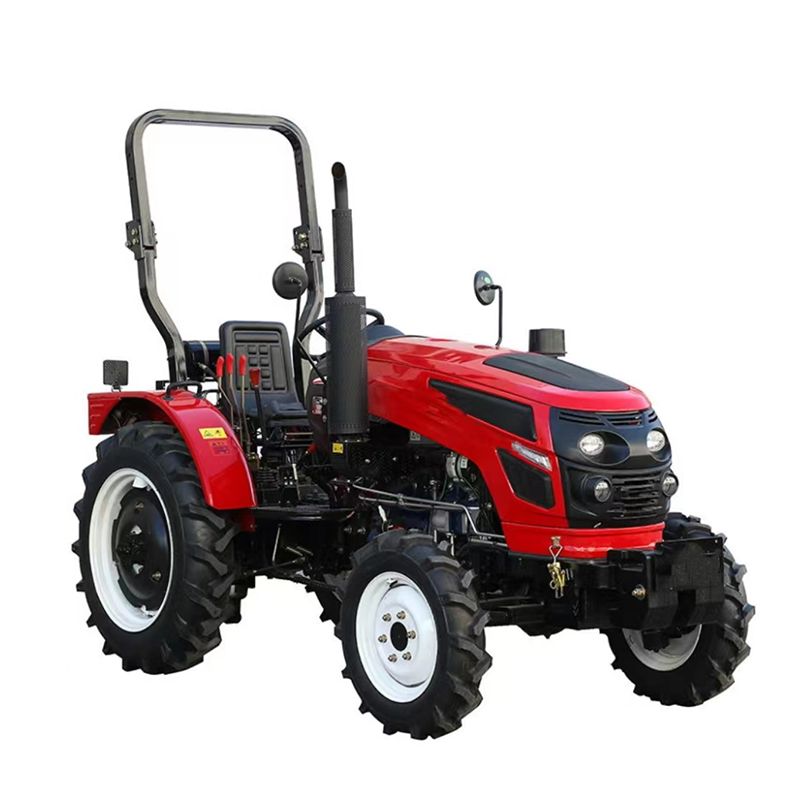

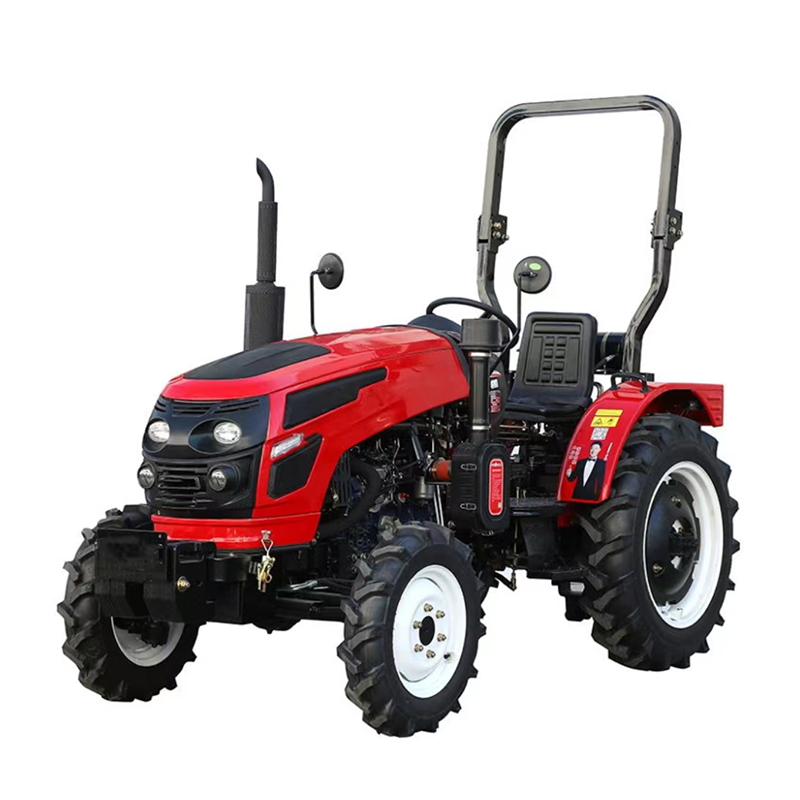

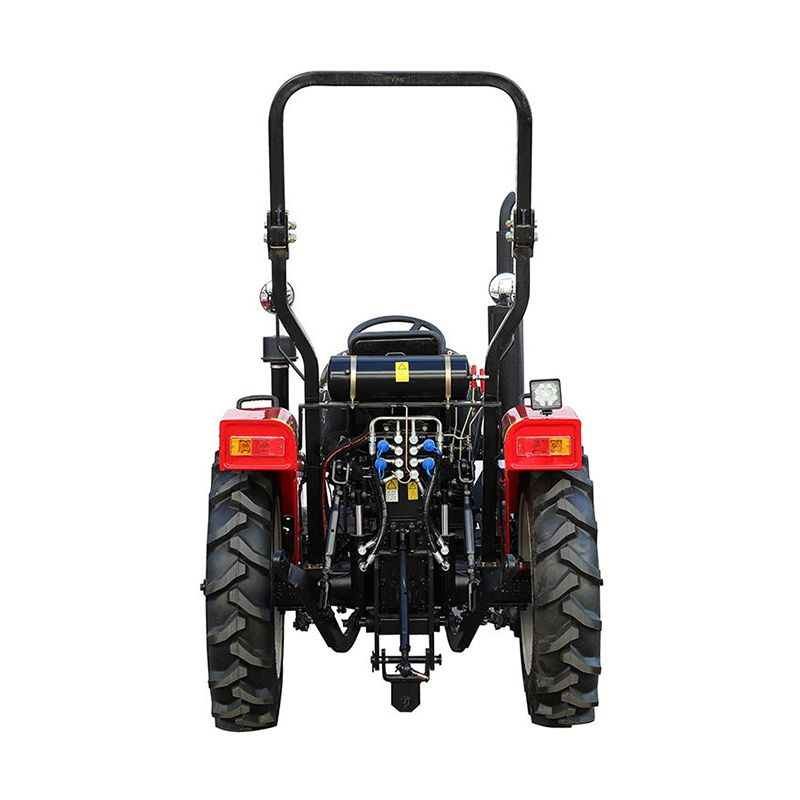

LKY Series 25-50Hp Tractor

· China EmissionⅡ Standard diesel engine. Engine is water cooled, direct injection with sound fuel efficiency and high torque output.
· Adopting anew type of high pressure lifter makes the work more convenient and flexible.
· 8F+2R gear shift , reasonable speed matching and high working efficiency.
· PTO speed can be 540/1000 rpm or 540/720 rpm, 6 splines or 8 splines. Can be equipped with variety tools.
Message
Product Introduction

LKY Series 25-50Hp Tractor

  • China EmissionStandard diesel engine. Engine is water cooled, direct injection with sound fuel efficiency and high torque output.

  • Adopting anew type of high pressure lifter makes the work more convenient and flexible.

  • 8F+2R gear shift , reasonable speed matching and high working efficiency.

  • PTO speed can be 540/1000 rpm or 540/720 rpm, 6 splines or 8 splines. Can be equipped with variety tools.


TRACTOR MODEL

LKY254

LKY304

LKY354

LKY404

LKY454

LKY504

ENGINE BRAND

Laidong

Yangdong

Laidong

Laidong

Laidong

Laidong

ENGINE MODEL

KM385BT

YD390T

4L22BT

KM490BT1

KM490BT

KM495BT

ENGINE POWER

18.4 kw

22.1 kw

25.7 kw

29.5 kw

33.1 kw

36.8 kw

ENGINE RATED SPEED

2350 rpm

2400 rpm

2350 rpm

2400 rpm

2400 rpm

2400 rpm

Weight

1310 kgs

1310 kgs

1380 kgs

1380 kgs

1450 kgs

1450 kgs

WHEEL DRIVE

4x4

GEAR SHIFT

8F+2R

CLUTCH TYPE

Single Action

DRIVING SPEED

2.10-31.97 km/h

PTO

6 Splines, 540/1000 rpm

GROUND CLEARANCE

310 mm

STEERING TYPE

Hydraulic Power

WHEEL BASE

1680 mm

1745 mm

1780 mm

1780 mm

1800 mm

1807 mm

WHEEL TREAD

1000-1200 mm

DIMENSION

3350x1400x2000 mm

TIRE SIZE

6.0-16/9.5-24 Inch

DIFFERENTIAL LOCK

Manual Differential Lock

THREE POINT HITCH

Rear, Category

OPTIONAL

Front & Rear Ballast


Rops , Roof or Warm Wind Cabin


1 or 2 Groups Hydraulic Output Valve


Air Brake System


6.5-16/11.2-24 Inch Tire

PACKAGE

Frame/One 40 HQ in 16 Units( Without Cab);

Frame/One 40 HQ in 12 Units (With Cab).
