Product Introduction

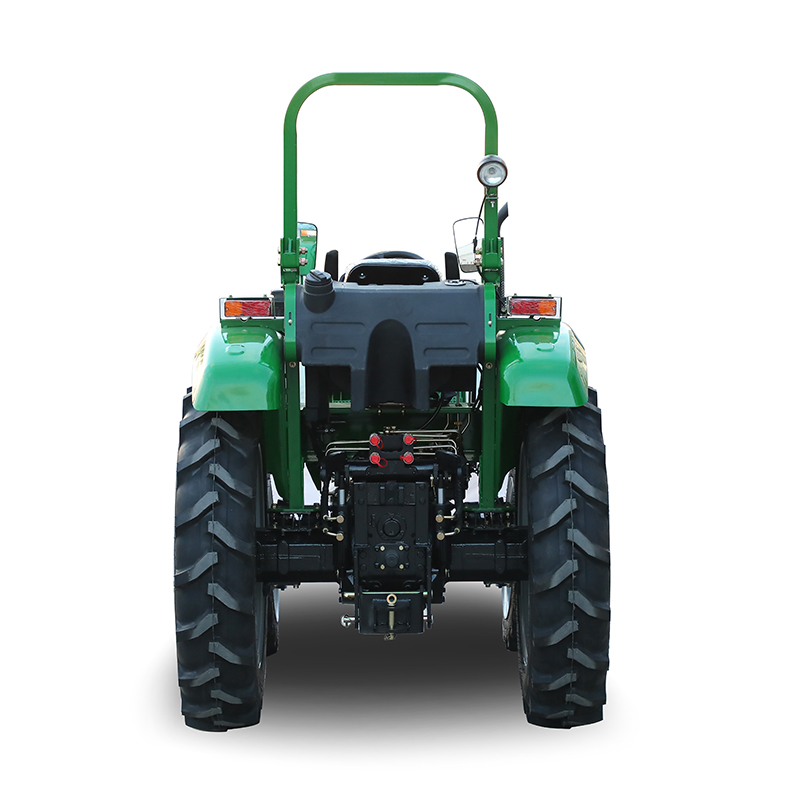

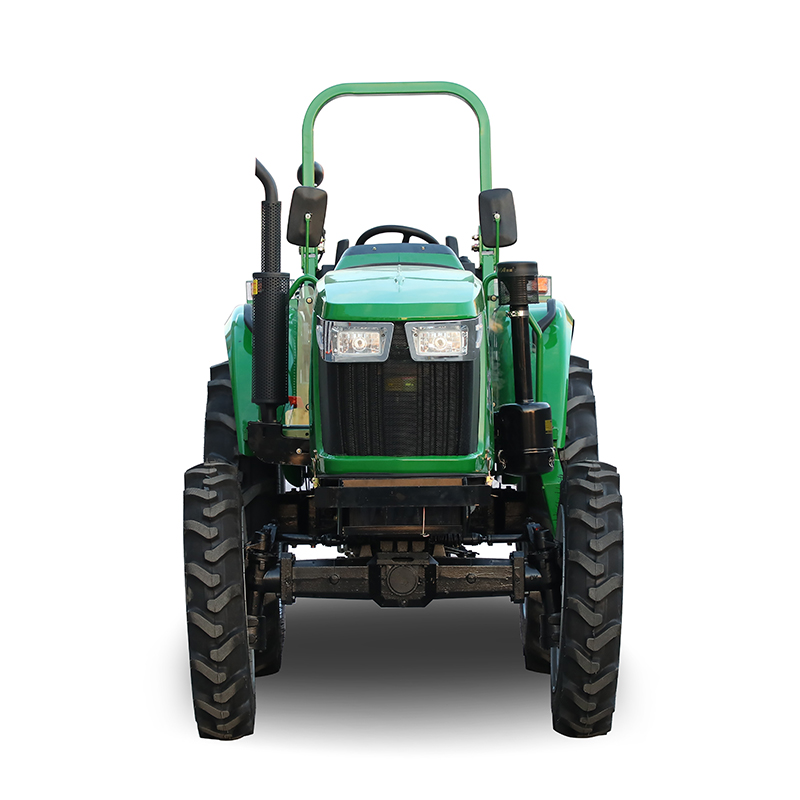

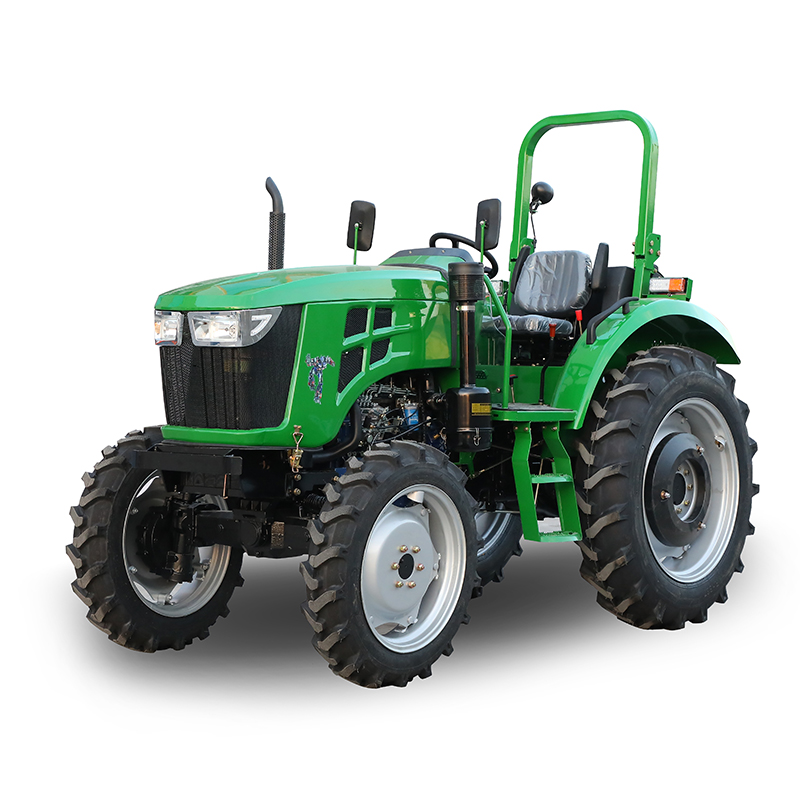

LKB Series 70-100Hp Tractor


  • The internal structures of the Front Drive Axle, Gearbox and Rear Drive Axle are all strengthened. So this type tractor can be connected to medium-sized agricultural equipment for operation.

  • Shuttle Shift 12+12 works together with Double Stage Clutch. So the tractor has convenient shifting and reasonable speed matching.

  • Hydraulic Lift Cylinder and Three Point Suspension are all upgraded, so lifting force is large.


TRACTOR MODEL

LKB704

LKB804

LKB904

LKB1004

ENGINE BRAND

Quanchai

ENGINE MODEL

QC4108T70

QC4108T80

4C6-90U32

4C6-100C35

ENGINE POWER

51.5 kw

59 kw

66.2 kw

73.5 kw

ENGINE RATED SPEED

2400 rpm

2400 rpm

2400 rpm

2400 rpm

WEIGHT

2920 kgs

3020 kgs

3120 kgs

3220 kgs

WHEEL DRIVE

4x4

GEAR SHIFT

12F+12R

CLUTCH TYPE

Double Action

DRIVING SPEED

2.46-32.73 km/h

PTO

6 Splines, 540/1000 rpm

GROUND CLEARANCE

380 mm

STEERING TYPE

Hydraulic Power

WHEEL TREAD

1300-1400 mm

WHEEL BASE

2050 mm

DIMENSION

4050x1830x2850 mm

TIRE SIZE

8.3-24/11-32 Inch

DIFFERENTIAL LOCK

Manual Differential Lock

THREE POINT HITCH

Rear, Category

OPTIONAL

Front & Rear Ballast


Yangdong brand engine and Laidong brand engine


Rops , Roof or Warm Wind Cabin


Air Brake System


9.5-24/14.9-30 Inch Tire

PACKAGE

Whole Machine/One 40 HQ in 3 Units.
