·Upgraded DK chassis to tow super-heavy agricultural machinery.
· 32F + 32R gears, gear control is more precise.
· Hydraulic electric control system can be installed for hydraulic output valve and three point hitch. Operation is more convenient.
· Assembling imported Carraro front axle, the body strength is further improved.
·Waterproof, soundproof, air-conditioned cab, equipped with reversing camera, making the driving environment more comfortable
Message
Product Introduction

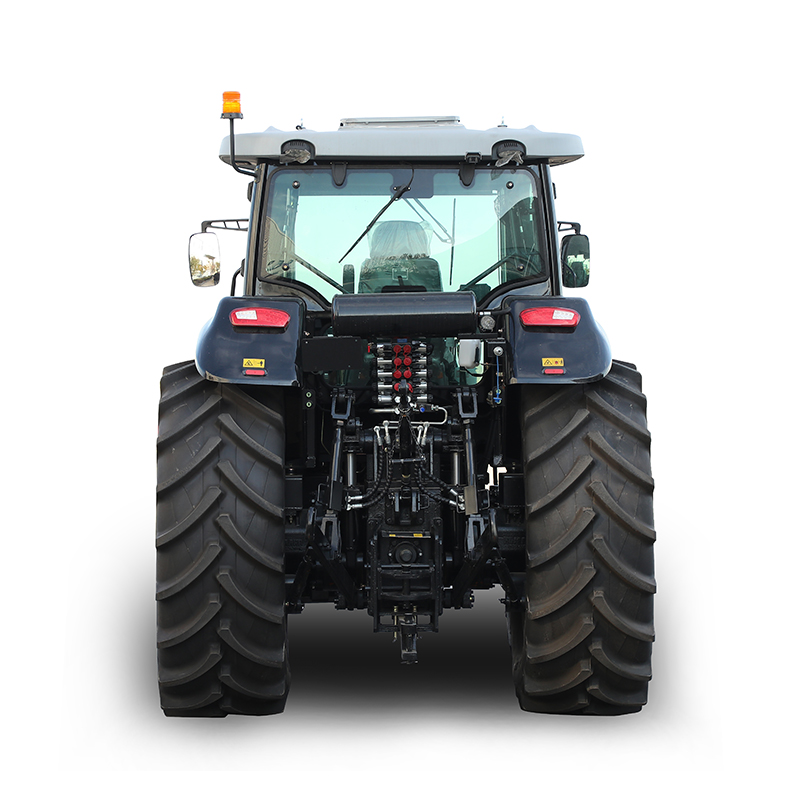

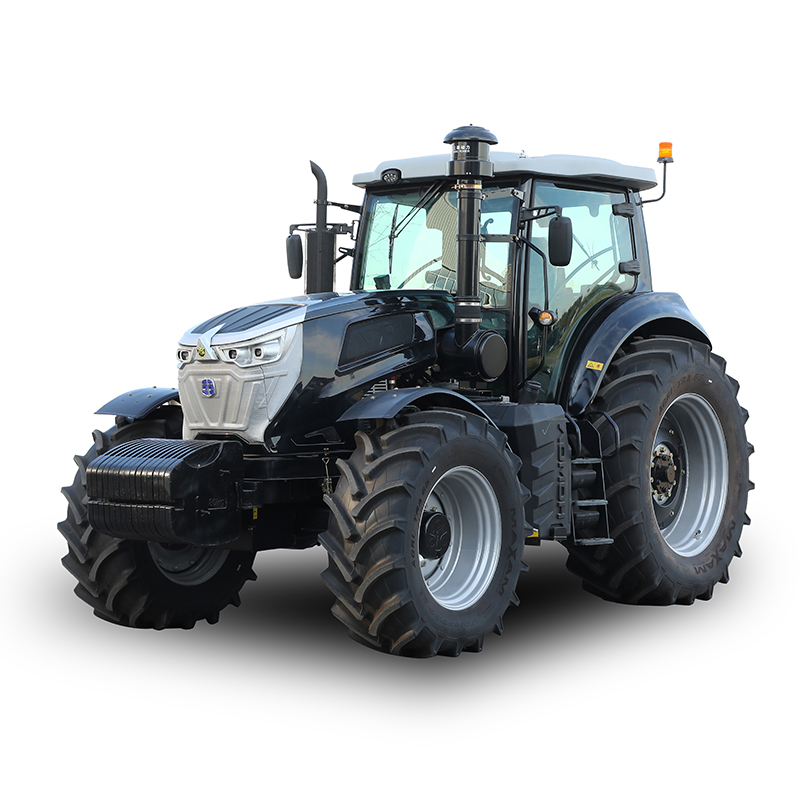

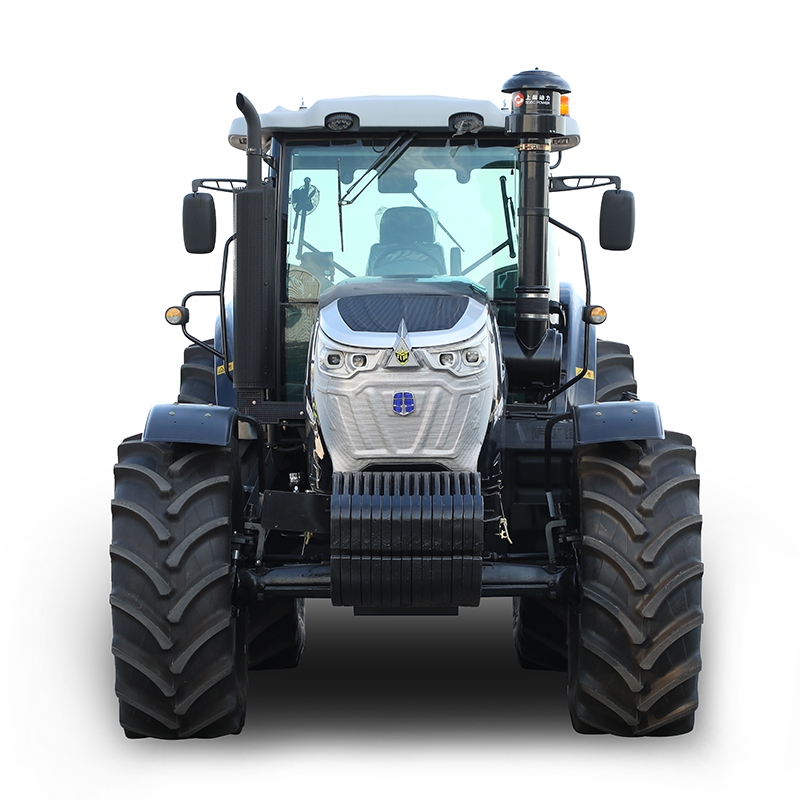

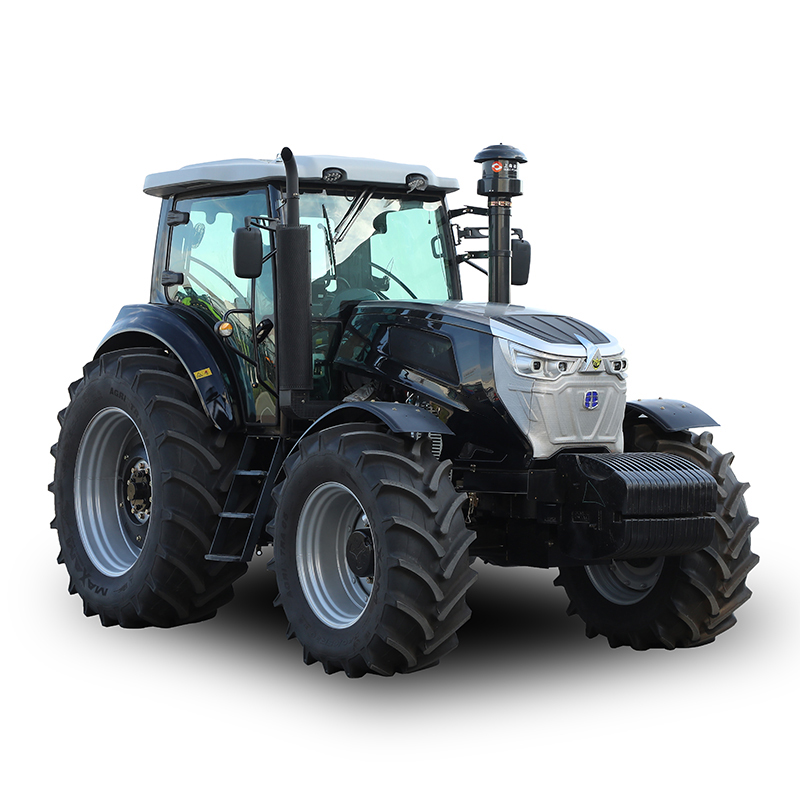

LKK Series 260-300Hp Tractor

  • Upgraded DK chassis to tow super-heavy agricultural machinery.

  • 32F + 32R gears, gear control is more precise.

  • Hydraulic electric control system can be installed for hydraulic output valve and three point hitch. Operation is more convenient.

  • Assembling imported Carraro front axle, the body strength is further improved.

  • Waterproof, soundproof, air-conditioned cab, equipped with reversing camera, making the driving environment more comfortable.


TRACTOR MODEL

LKK2604

LKK3004

ENGINE BRAND

Shangchai

Shangchai

ENGINE MODEL

SC7H260G3

SC9DK300G3

ENGINE POWER

191.5 kw

221 kw

ENGINE RATED SPEED

2200 rpm

2200 rpm

WEIGHT

9800 kgs

10000 kgs

WHEEL DRIVE

4x4

GEAR SHIFT

32F+32R

CLUTCH TYPE

Double Action

DRIVING SPEED

3.41-32.48 km/h

PTO

6 Splines, 540/1000 rpm

GROUND CLEARANCE

450 mm

STEERING TYPE

Hydraulic Power

WHEEL BASE

3020 mm

WHEEL TREAD

2000-2100 mm

DIMENSION

5700x2780x3200 mm

TIRE SIZE

540/65R30/650/65R42

DIFFERENTIAL LOCK

Manual Differential Lock

THREE POINT HITCH

Rear, Category

OPTIONAL

Electric Control Hydraulic System


Front PTO and Front Suspension


Cabin Window Water Sprayer


Air Brake System


420/85R28/520/85R38 Double Rear Tire
