LKB70hp~100hp 80HP
· Shuttle Shift 12+12 works together with Double Stage Clutch. So the tractor has convenient shifting and reasonable speed matching.
· Hydraulic Lift Cylinder and Three Point Suspension are all upgraded, so lifting force is large.

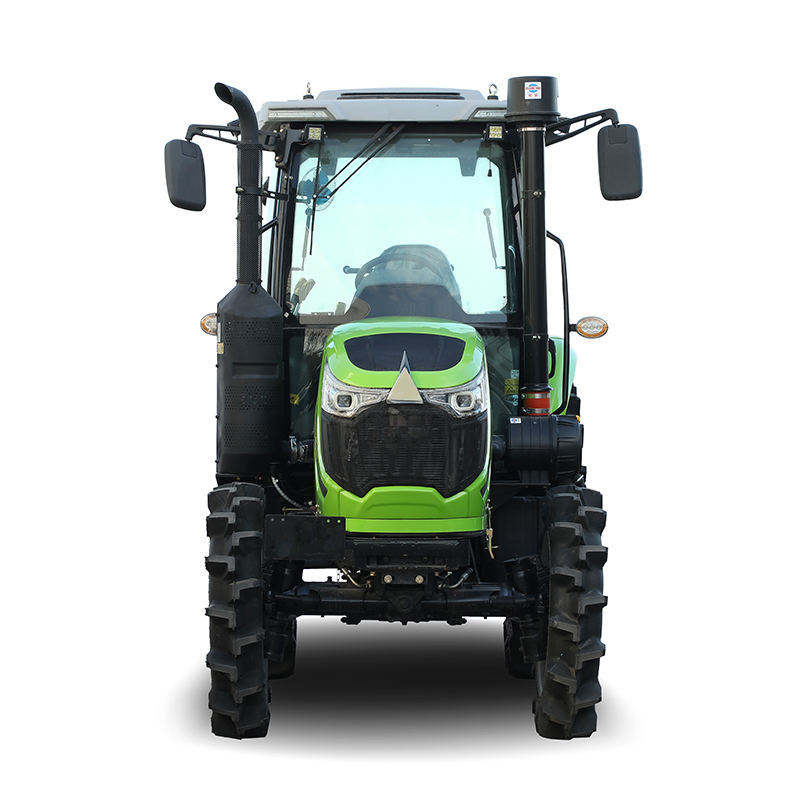

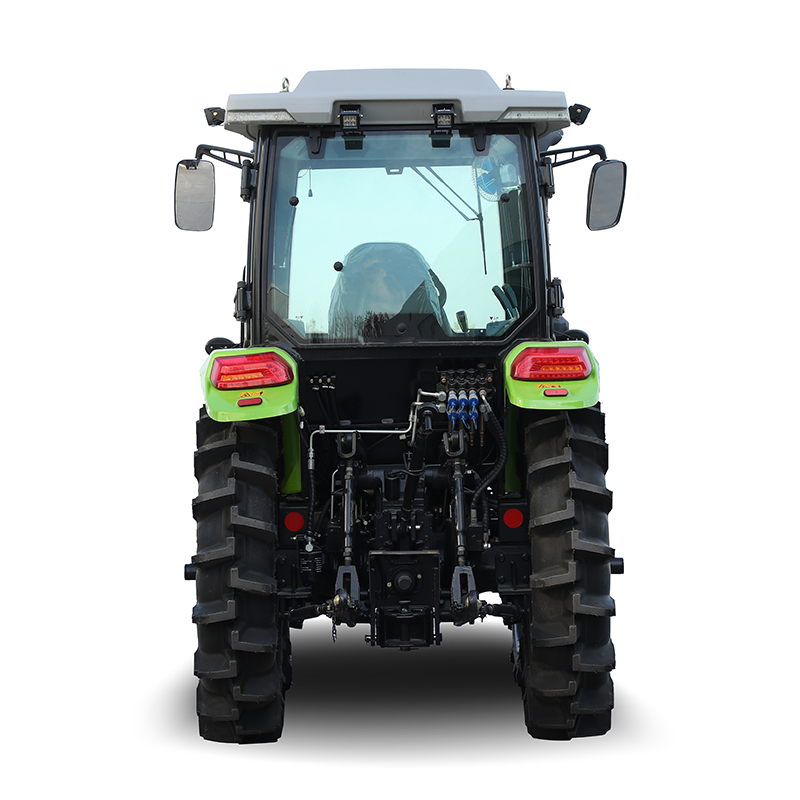

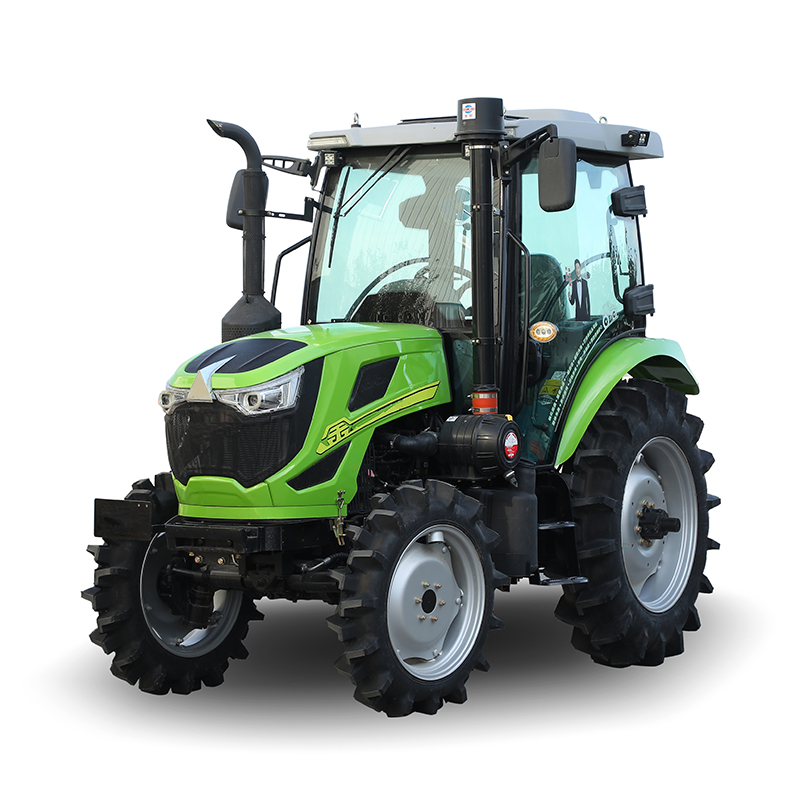

LKB Series 70-100Hp Tractor
The internal structures of the Front Drive Axle, Gearbox and Rear Drive Axle are all strengthened. So this type tractor can be connected to medium-sized agricultural equipment for operation.
Shuttle Shift 12+12 works together with Double Stage Clutch. So the tractor has convenient shifting and reasonable speed matching.
Hydraulic Lift Cylinder and Three Point Suspension are all upgraded, so lifting force is large.
TRACTOR MODEL | LKB704 | LKB804 | LKB904 | LKB1004 |
ENGINE BRAND | Quanchai | |||
ENGINE MODEL | QC4108T70 | QC4108T80 | 4C6-90U32 | 4C6-100C35 |
ENGINE POWER | 51.5 kw | 59 kw | 66.2 kw | 73.5 kw |
ENGINE RATED SPEED | 2400 rpm | 2400 rpm | 2400 rpm | 2400 rpm |
WEIGHT | 2920 kgs | 3020 kgs | 3120 kgs | 3220 kgs |
WHEEL DRIVE | 4x4 | |||
GEAR SHIFT | 12F+12R | |||
CLUTCH TYPE | Double Action | |||
DRIVING SPEED | 2.46-32.73 km/h | |||
PTO | 6 Splines, 540/1000 rpm | |||
GROUND CLEARANCE | 380 mm | |||
STEERING TYPE | Hydraulic Power | |||
WHEEL TREAD | 1300-1400 mm | |||
WHEEL BASE | 2050 mm | |||
DIMENSION | 4050x1830x2850 mm | |||
TIRE SIZE | 8.3-24/11-32 Inch | |||
DIFFERENTIAL LOCK | Manual Differential Lock | |||
THREE POINT HITCH | Rear, Ⅱ Category | |||
OPTIONAL | Front & Rear Ballast | |||
Yangdong brand engine and Laidong brand engine | ||||
Rops , Roof or Warm Wind Cabin | ||||
Air Brake System | ||||
9.5-24/14.9-30 Inch Tire | ||||
PACKAGE | Whole Machine/One 40 HQ in 3 Units. | |||
