AG90HP~140HP
·Tractor has 16F+8R Shuttle Shift and independent operation of Double Stage Clutch. So the tractor is easy for operation and has reliable performance.
·The fully enclosed air-conditioned cabin is equipped with a sound system, and the cab has a sunroof for comfortable operation.

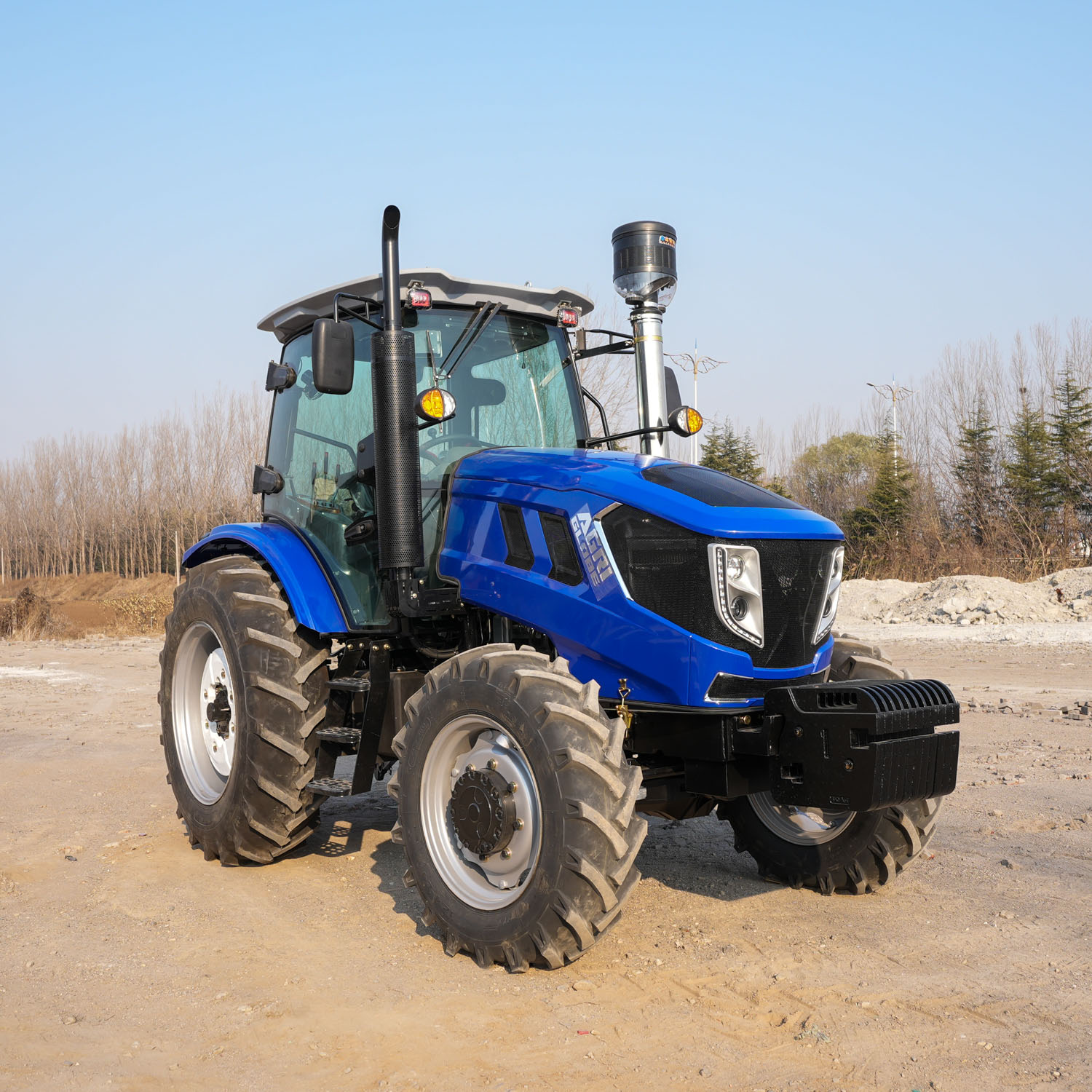

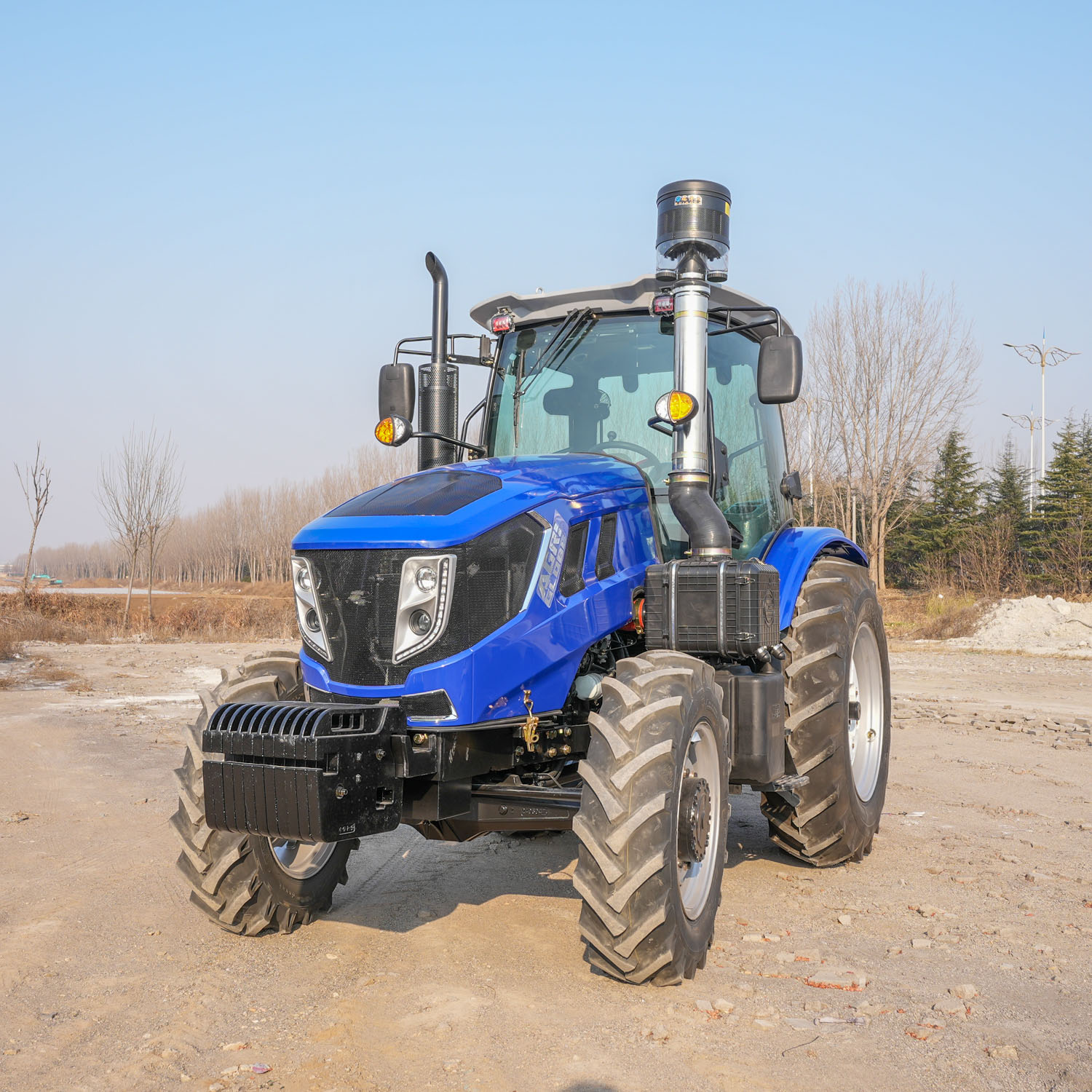

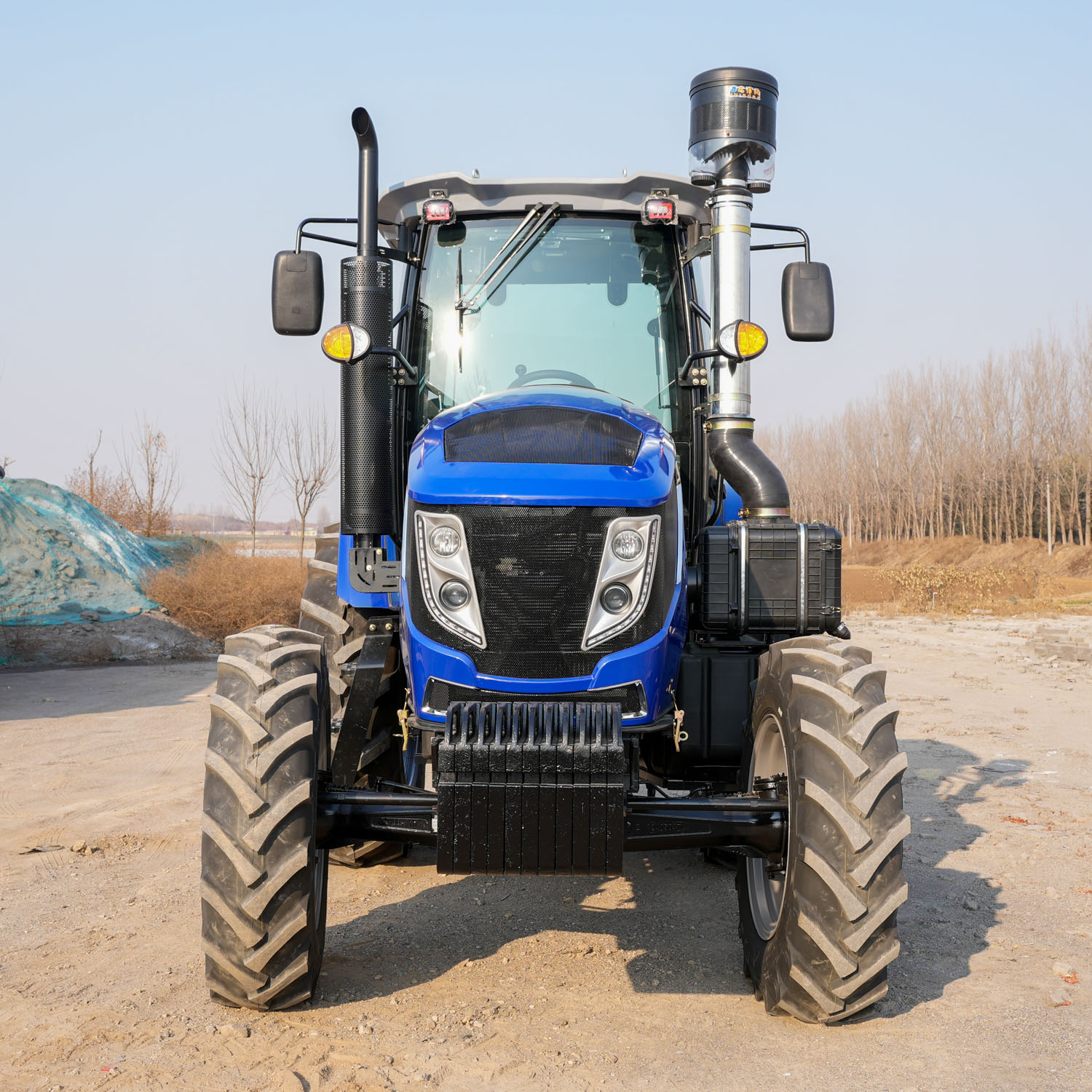

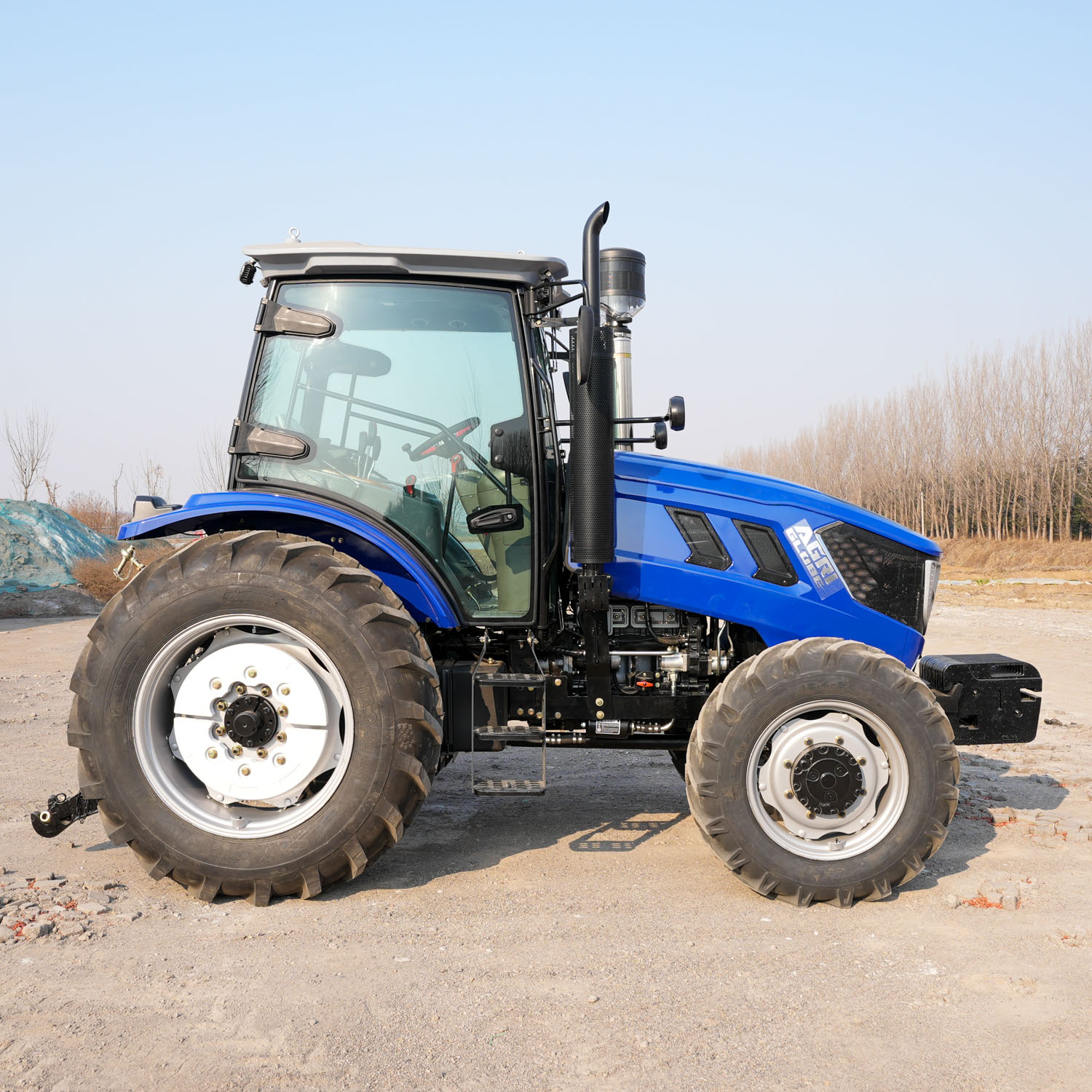

AG Series 90-140Hp Tractor
Heavier, thicker, wider and longer chassis, strong traction.
Tractor has 16F+8R Shuttle Shift and independent operation of Double Stage Clutch. So the tractor is easy for operation and has reliable performance.
The fully enclosed air-conditioned cabin is equipped with a sound system, and the cab has a sunroof for comfortable operation.
TRACTOR MODEL
AG904
AG1004
AG1104
AG1204
AG1304
AG1404
ENGINE BRAND YTO ENGINE POWER
66.2 kw
73.5 kw
81 kw
88.2 kw
95.6 kw
103 kw
ENGINE RATED SPEED
2200 rpm
2200 rpm
2200 rpm
2200 rpm
2200 rpm
2200 rpm
WEIGHT
4300 kgs
4300 kgs
4300 kgs
4400 kgs
5180 kgs
5180 kgs
WHEEL DRIVE
4×4
GEAR SHIFT
16F+8R
CLUTCH TYPE
Double Action
DRIVING SPEED
1.6-34.7 km/h
PTO
6 Splines, 540/1000 rpm
GROUND CLEARANCE
420mm
STEERING TYPE
Hydraulic Power
WHEEL BASE
2210 mm
WHEEL TREAD
1600-1700 mm
DIMENSION
4500×2200×2900 mm 4600×2200×2900 mm
TIRE SIZE
13.6-24/16.9-34 Inch
DIFFERENTIAL LOCK
Manual Differential Lock
THREE POINT HITCH
Rear, Stronger Category
OPTIONAL
Front Fender
Front & Rear Ballast
14.9-26/18.4-38 Inch Tire
Air Brake System
Swing Tow Bar
PACKAGE
Yuchai brand engine and YTO brand engine
Cabin Window Water Sprayer
